Pantograph Monitoring

Delivery of Design & Construction services for the electrical and data works for Pantograph Monitoring Equipment for Network Rail.

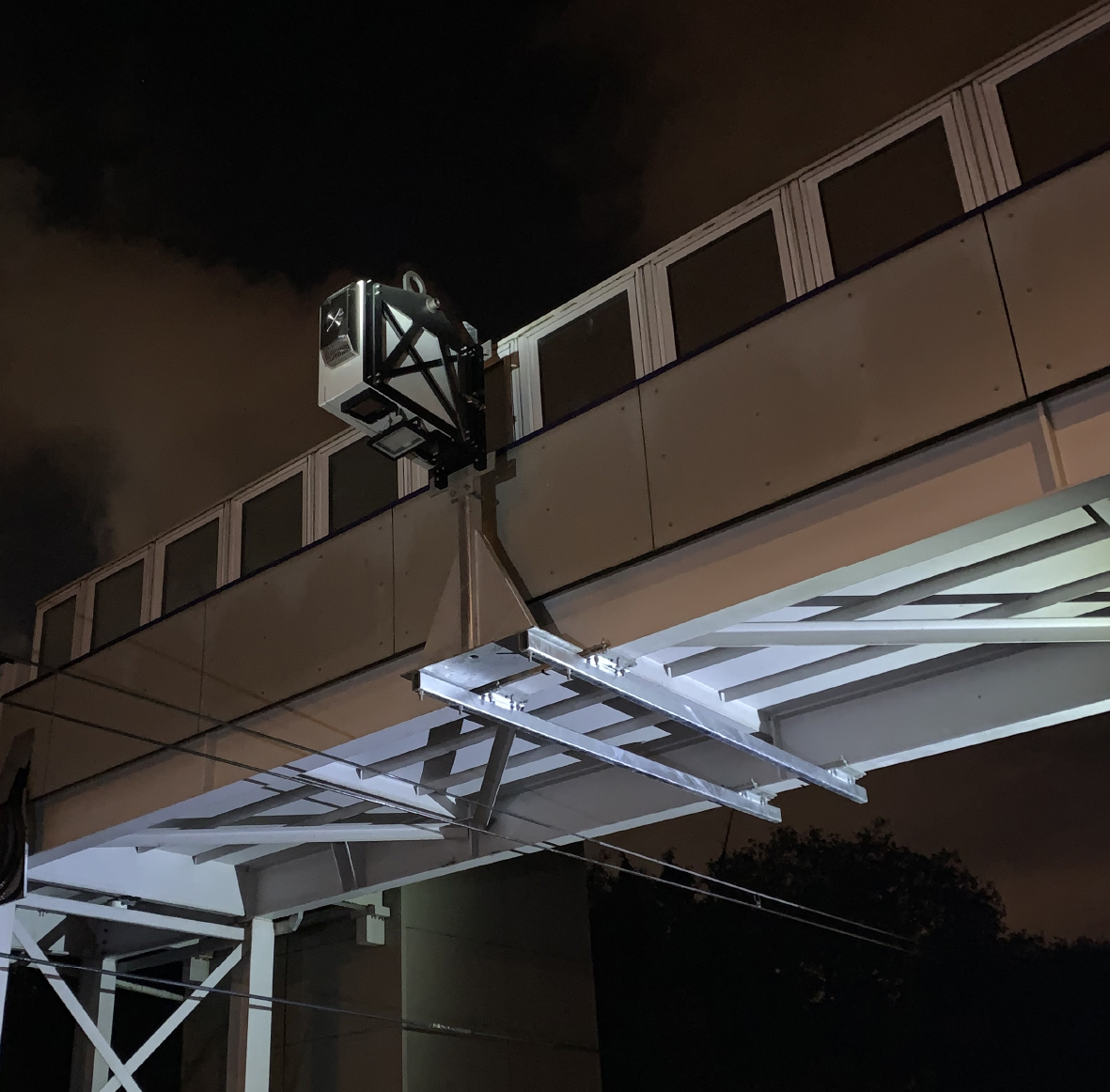

Forte Engineering Ltd delivered the Design & Construction services for the Electrical and Data works for Pantograph Monitoring Equipment at Hyndland, Glasgow.

Works included the production of detailed design & construction of the LV electrical system and the data communications link between the scanners and the Pantoinspect server.

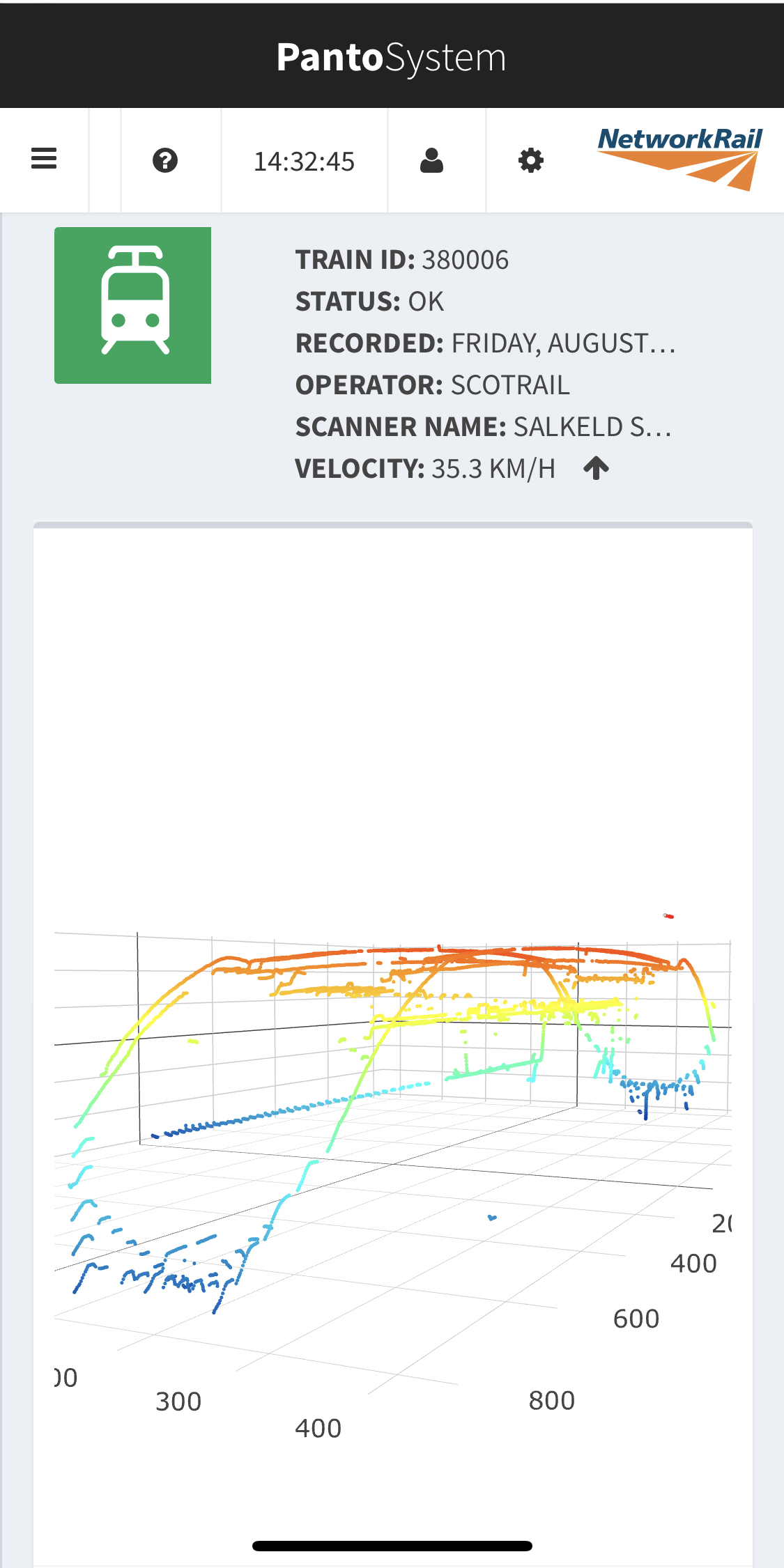

Pantograph Monitoring

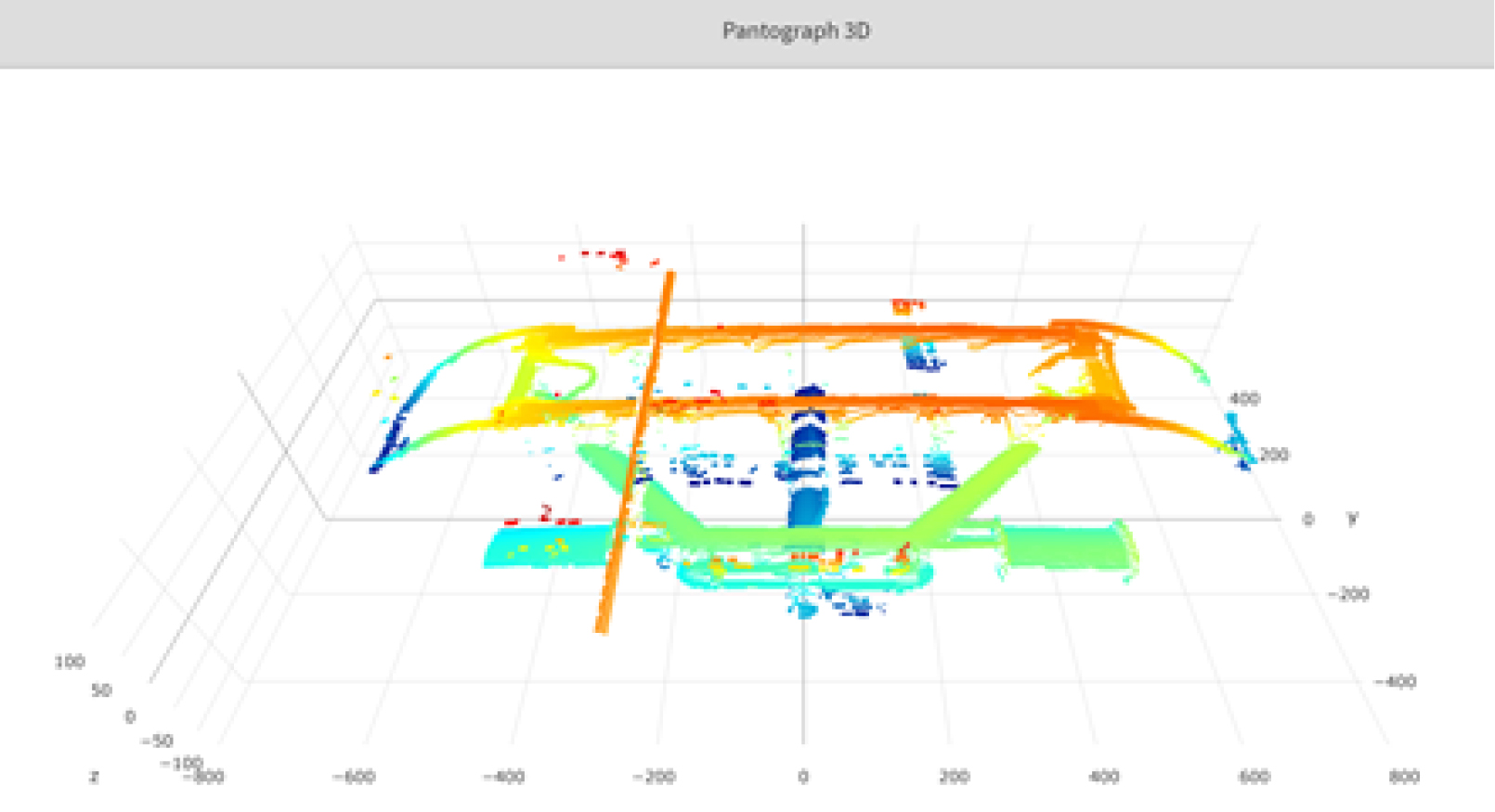

Pantograph Monitoring
Pantograph Monitoring

Forte Engineering Ltd managed the design delivery of each key activity through to construction for Network Rail.



Data

  • Installation of GSM router and associated POE switches
  • Data links between the scanner and Pantoinspect server
  • Installation & commission of the RFID equipment to identify trains
  • Configuration of the weather station and web camera equipment
  • New copper and fibre cabling installation and commissioning.

Electrical

  • New LV supply connection to Power the Pantoinspect Data cabinet.
  • Earthing & Bonding; this included a fully design solution with the existing station.
  • LV supply cabling to each scanner
  • Cable containment
  • Test & Commission to BS7671:2018
